Rigid 60° Flared Mud Guards (Aluminium)
Rigid 60° Flared Mud Guards (Aluminium)
Couldn't load pickup availability
Welderup Kustoms' Rigid Mud Guards
Welderup Kustoms Mud Guards are not only purpose built for your tray build, but are damn sexy!
Front & Rear Angles are both 60 degrees opposed to the 55 degrees on our Original Guards.
45 degree outer fold is 70mm opposed to the 50mm on our Original Guards.
Please note these guards fit up to a maximum 35" tyre.
SHIPS IN 4 TO 5 WEEKS
Note: These are a Made to Order style and as such aren’t kept in stock. Upon ordering, we will order the guards from our laser cutters and take to our engineers for cnc folding, this process can take upto 2-3 weeks.
Standard features:
Made in Australia - In our little workshop (No imported goods here)
Sold as a pair
TIG Welded
3mm Alloy
Slotted top for ease of fitment and adjustment
Material:
3mm Aluminium (Mill Finish)
Finish Options:
Raw - Mill Finish (Exposed TIG Welds)* (Lead time is upto 3 weeks)
Satin Black - Powdercoated (Outsourced - Lead time is upto 4 weeks)
*Mill Finish is prone to scratches, blemishes and tooling marks from manufacture.

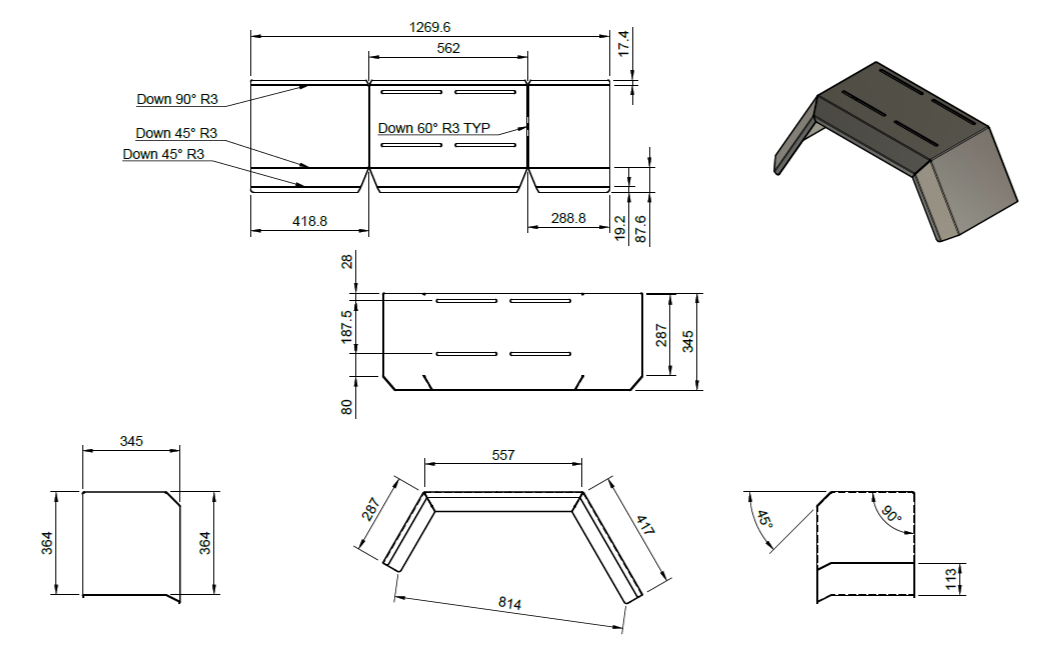

Dimensions:
345mm Wide
562mm Top Length
287mm Front Fold
417mm Rear Fold
900mm Overall Opening
